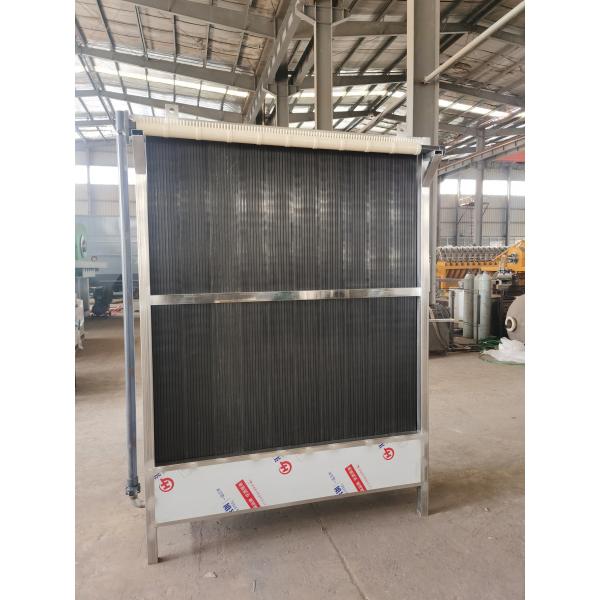

Flat MBR SS304 Rack Bio Reactor for Sewage Treatment with PVDF material 0.1um pore size
Flat Sheet Membrane

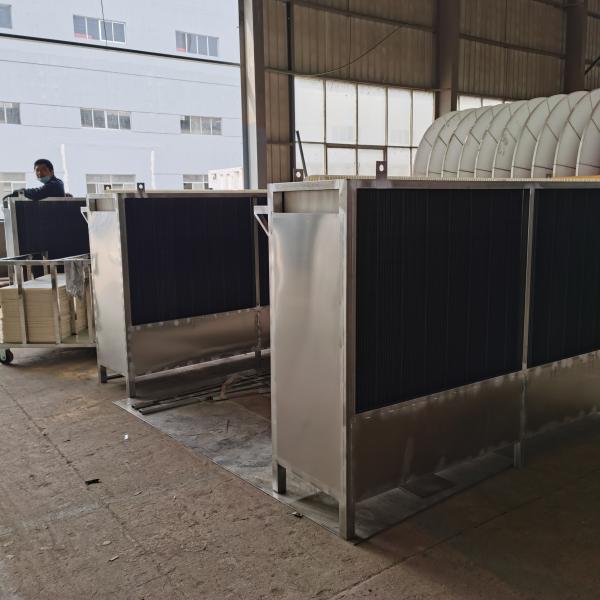

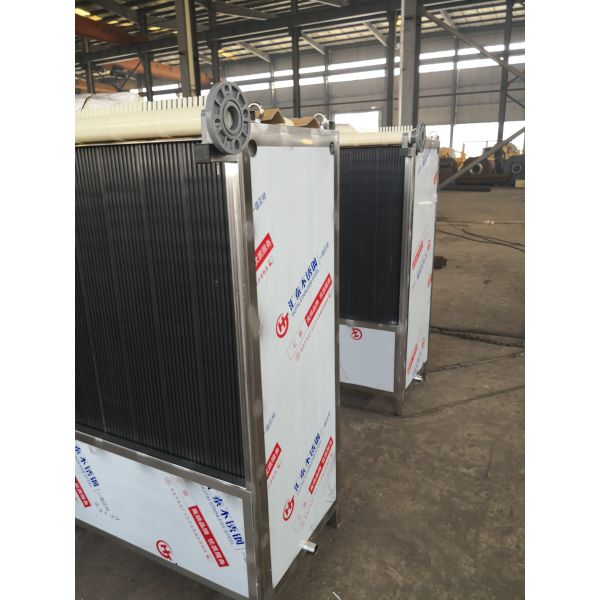

The membrane module consists of a membrane case and a diffuser case
Membrane case: To arrange membrane elements and collect the permeate water.
- Membrane element: Pore diameter 0.1μm PVDF flat sheet membrane;
- Hose: Connect the membrane and permeate manifold;
- Rubbers and covers: Fix membrane elements, prevent the vibration and floating;
- Manifold: Collect the permeate water from each membrane element and connect the main permeate pipe with flange;
- Guide plate: Fix the membrane element equidistance.
Diffuser case:
Main function: to mix the air and water evenly, to prevent membrane fouling and provide oxygen for the biochemical reactions.
Diffuser: Special perforated diffuser for MBR.
Advantages:
1)Water quality is good, running stability, cover an area of an area small, easy to manage
2)Membrane bioreactor device consists of hollow fiber membrane MBR and flat membrane MBR two kinds big, flat membrane compared with hollow fiber membrane, high flux, low operation pressure, strong ability to resist pollution, long operation cycle, simple cleaning, to maintain the high flux under the condition of higher sludge concentration and stable operation.
Membrane Bioreactor MBR sheet (pcs.)
| Model | KH-MBRP-80-PVDF | KH-MBRP-150-PVDF |
| Size (LxWxT) | 1000×490×7 mm | 1750×490×7mmm |
| Membrane effective area (m²) | 0.8 | 1.5 |
| Weight (kg) | 3 | 4.5 |
| Permeate flux [L/ (pc.d)] | 320-480 | 600-900 |
| Membrane Material | PVDF | PVDF |
| Membrane pore size (μm) | 0.1 | 0.1 |
| Plate material | ABS | ABS |
| Air flow rate [L/(min.pc)] | ≥ 10 | ≥ 12 |
| pH | 2 ~ 13 | 2 ~ 13 |
| Output turbidity (NTU) | < 1.0 | < 1.0 |
| Output SS (mg/L) | ≤ 1.0 | ≤ 1.0 |
| Chemical cleaning | ≤ 3,000mg/1 NaCIO | ≤ 3,000mg/1 NaCIO |
Module*(All customized models are available by online inquiry)
| Models | KH-MBRMDP150×150 | KH-MBRMDP150×160 | KH-MBRMDP150×180 | KH-MBRMDP150×200 |
| Treating Capacity | 72-90 (m3/d) | 72-96 (m3/d) | 84-108 (m3/d) | 96-120 (m3/d) |
| Quantity of membrane modules (pcs.) | 150 | 160 | 180 | 200 |
| Effective Membrane area | 225 m² | 240 m² | 270 m² | 300 m² |
| Size (LxWxH)(mm) | 2378×610×2300 | 2526×610×2300 | 2823×610×2300 | 3120×610×2300 |
| Frame material | SUS304 | SUS304 | SUS304 | SUS304 |
